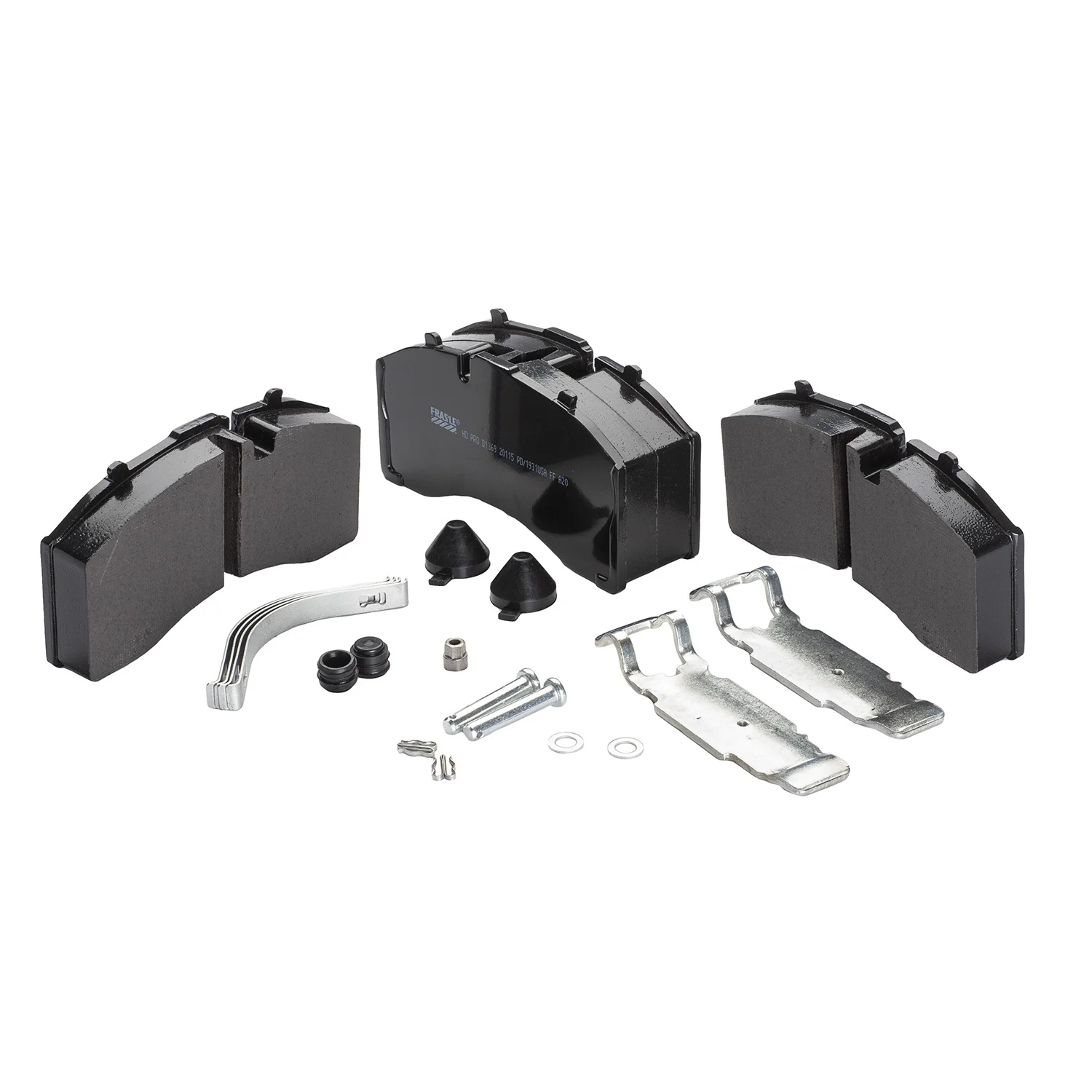

DB-1369HD

• Construction: Positive molded air disc brake pad with advanced mechanical retention system (MRS) featuring integrally molded friction material bonded to powder-coated steel backing plate.
• Material: Asbestos-free, copper-free semi-metallic friction material with graphite-metallic composition designed for superior thermal stability and rotor-friendly performance.
• Compliance: FMVSS-121 and ECE R-90 certified, meets N-Level copper compliance standards with operating temperature range from -40°C to +650°C.
• Typical Application: Compatible with Bendix ADB22X, ADB22X-LT, and Knorr-Bremse SK7 air disc brake systems on heavy-duty trucks, trailers, and commercial vehicles including Freightliner, Kenworth, Mack, and Peterbilt models.

This is a heavy-duty air disc brake pad set designed for Bendix ADB22X and Knorr SK7 applications, featuring FMSI specification D1369-8479 with copper-free semi-metallic friction material measuring 210mm x 108mm x 30mm, specifically engineered for linehaul and on-highway commercial vehicle operations requiring maximum thermal performance and extended wear life.
