FL-152312

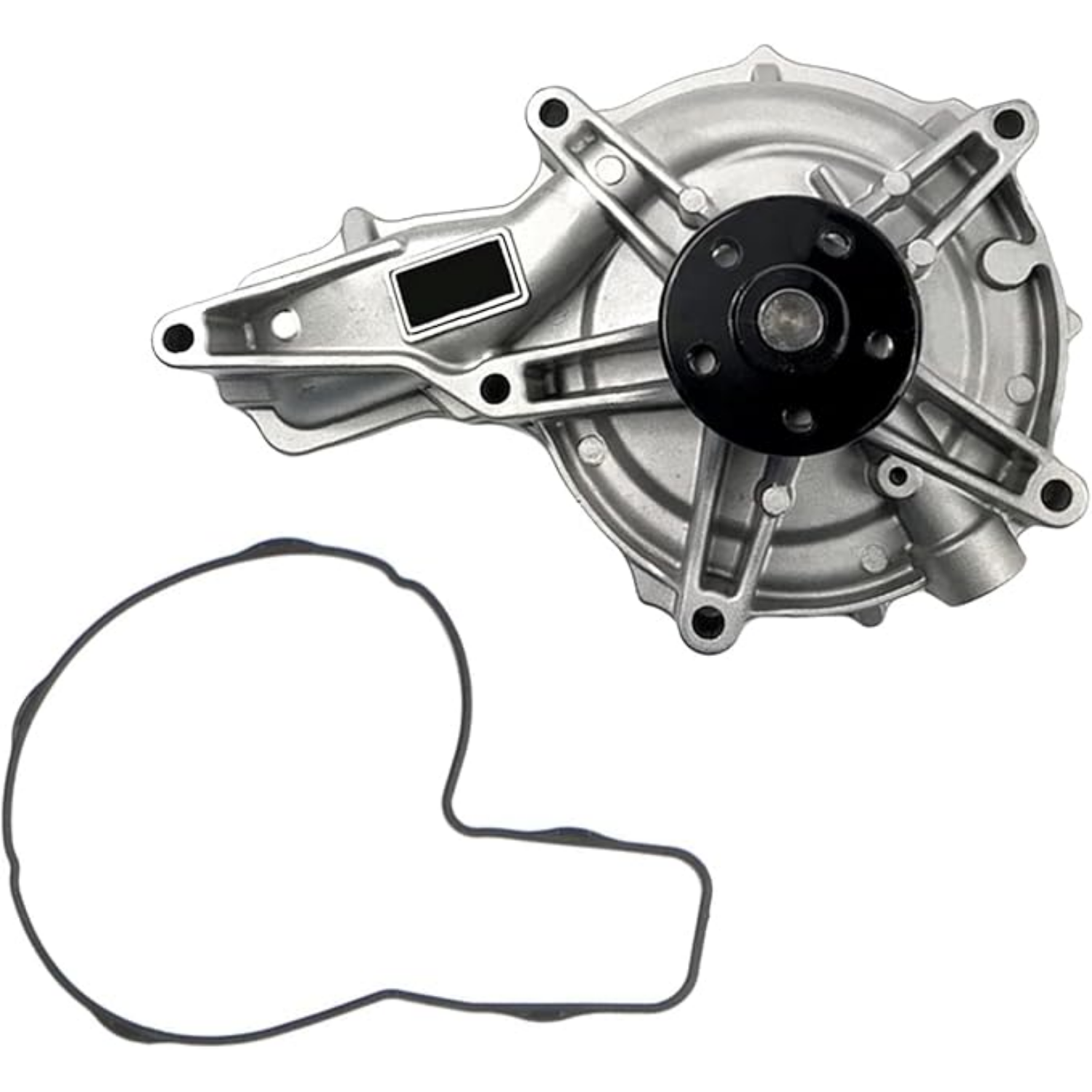

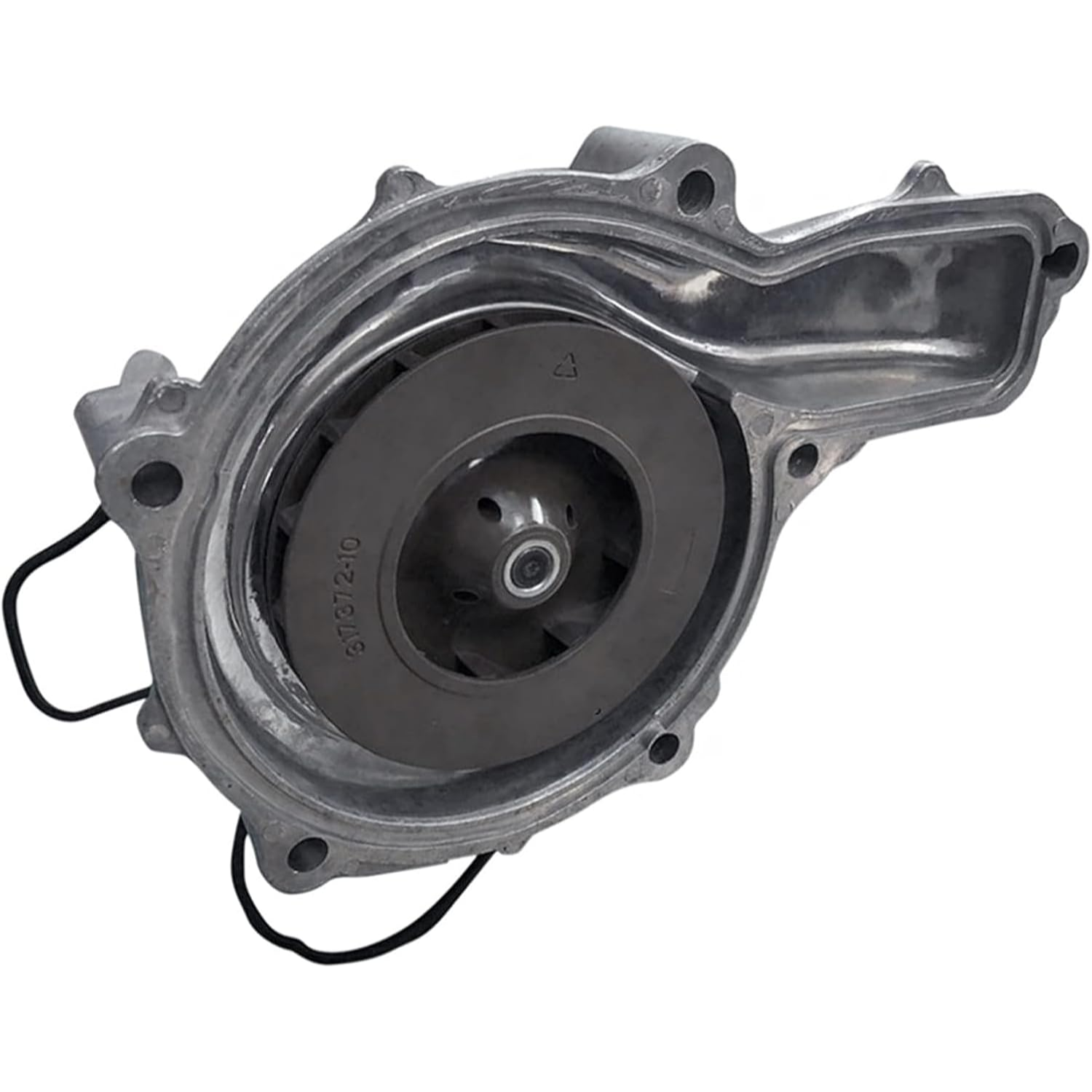

Water Pump Mack Volvo 2004-2016
4.5 Ratings
Part # FL-152312
UPC/GTIN# 601961386617
Availability In Stock (1)
Feature Specification
Pump type Centrifugal, engine-mounted
Housing material Cast iron (gray)
Impeller 8-vane, precision-machined steel
Drive Gear-driven from timing train
Coolant flow 170–190 L/min at 2,100 rpm (D11/D13/MP7/MP8 engines)
Shaft bearing Double, grease-packed ball bearings
Seal Silicon-carbide mechanical seal
Gasket Viton® O-ring (included)
Weight ≈2.6 kg, boxed
Operating range -40 °C – 120 °C continuous
  • Engine coverage – Fits Mack MP7, MP8, MP10 and Volvo D11, D13, D16 Euro 4/5 powerplants used in VN/VNL/VHD chassis built 2004-2016, plus Renault Dxi11/13 bus platforms.
  • OE-grade construction – Cast-iron body resists cavitation; silicon-carbide seal and double ball bearings match OEM durability targets for 450,000 mi/15,000 h service life.
  • Direct bolt-on – Clocked inlet/outlet ports and 13-tooth drive gear align with factory timing cover; no bracket or hose modifications required.
  • Quality & warranty – Produced in an IATF-16949 plant and supplied with a 12-month parts warranty.

Heavy-duty, gear-driven water pump that restores factory coolant flow on 2004-2016 Mack MP-series and Volvo D-series engines. Cast-iron housing and steel impeller withstand high thermal loads, while a silicon-carbide mechanical seal prevents leakage under extended idling or high-boost operation. Includes Viton O-ring; reuse OE bolts and back plate.

Cross Reference / Part Interchange

Mack Trucks 05-070024, 21468472
Volvo Trucks 21468472 · 21469157 · 20464403 · 20505543
Volvo Penta 21468471 · 22902393
